[파이썬] 문제 : 터틀(turtle) 이름 쓰기

by 오디세이99 2023. 5. 28.
728x90
반응형
import turtle

t = turtle.Turtle()
t.hideturtle()
t.width(3)

def get_length(base, height):             # 빗변 길이. hypotenuse
    return math.sqrt(base**2 + height**2)

def get_angle(base, height):              # 각도 계산
    angle = math.atan(height / base)
    return angle * 180 / math.pi

def draw_ㄱ(x, y, width, height):         # 사각형 내에서 그린다고 할때 좌상단이 x, y 좌표. 가로축 width, 높이 height
    t.penup()               # 이동할때 선이 그려지지 않도록 펜을 듬
    t.goto(x, y)            # x,y 좌표로 이동
    t.pendown()             # 그리기 위해 펜을 내림
    t.setheading(0)         # 펜의 방향 초기화(우측). 이를 초기화하기 않으면 매번 다른 글자 쓸때마다 방향이 달라서 그리기 어려움

    t.forward(width)        # width 만큼 선을 그림. ㄱ의 ㅡ
    t.right(90)             # 오른쪽으로 90 회전
    t.forward(height)       # height 만큼 선을 그림  ㄱ의 ㅣ

def draw_ㅂ(x, y, width, height):
    t.penup()
    t.goto(x, y)
    t.pendown()
    t.setheading(0)

    t.right(90)
    t.forward(height)
    t.backward(int(height/2))
    t.left(90)
    t.forward(width)
    t.left(90)
    t.forward(int(height / 2))
    t.backward(height)
    t.left(90)
    t.forward(width)

def draw_ㅏ(x, y, width, height):
    t.penup()
    t.goto(x, y)
    t.pendown()
    t.setheading(0)

    t.right(90)
    t.forward(int(height/2))
    t.left(90)
    t.forward(width)
    t.backward(width)
    t.right(90)
    t.forward(int(height / 2))


def draw_ㅅ(x, y, width, height):
    t.penup()
    y1 = y-(height)      # ㅅ에서 좌측 하단으로 이동하기 위해 y계산(세로축)
    t.goto(x, y1)
    t.pendown()
    t.setheading(0)

    angle = get_angle(int(round(width/2,1)), height)   # 직각삼삭형에서 높이와 밑변 길이를 알때 각도 계산
    angle2 = 180 - (90 + angle)                        # ㅅ의 좌측 하단에서 중앙상단으로 이동 후 내려가는 각도 계산
    length = get_length(int(round(width/2,1)), height) # 긱각삼걱형에서 높이와 밑변 길이를 알때 빗변 길이 계산

    t.left(angle)           # ㅅ의 / 의 각도 바꿈
    t.forward(length)       # ㅅ의 / 의 길이는 삼각형의 빗변 길이로 사용
    t.right(180)            # ㅅ의 / 이후 ∖ 각도 계산을 위해서 먼저 / 방향으로 회전
    t.left(angle2 * 2)      # 직각삼각형(ㅅ을 직각삼각형 2개로 봄)에서 왼쪽 직각삼각형에서 90, angle 그리고 하나는 180-(90+angle). 이 각도를 2번 하면 계산됨
    t.forward(length)       # ㅅ에서 ∖ 그림

def draw_ㅣ(x, y, width, height):     # 한글 ㅣ (이)
    t.penup()
    t.goto(x, y)
    t.pendown()
    t.setheading(0)

    t.right(90)
    t.forward(height)


def draw_ㅇ(x, y, width, height):
    t.penup()
    # t.goto(x+(int(width/2)), y-(int(height/2)))
    t.goto(x, y-(int(height/2)))
    t.pendown()
    t.circle(width / 2)

def draw_ㅕ(x, y, width, height):
    t.penup()
    t.goto(x+(width), y)
    t.pendown()
    t.setheading(0)

    t.right(90)
    t.forward(int(height/3))
    t.right(90)
    t.forward(width)
    t.backward(width)
    t.left(90)
    t.forward(int(height/3))
    t.right(90)
    t.forward(width)
    t.backward(width)
    t.left(90)
    t.forward(int(height/3))

def draw_ㄴ(x, y, width, height):
    t.penup()
    t.goto(x, y)
    t.pendown()
    t.setheading(0)

    t.right(90)
    t.forward(height)
    t.left(90)
    t.forward(width)

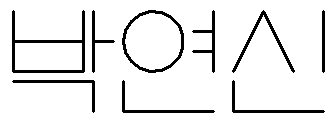

# 예시로 (50, 50) 위치에 폭 100, 높이 150 크기의 'ㄱ'을 그립니다.
# draw_ㄱ(-100, 0, 60, 60)

draw_ㅂ(-150, 0, 70, 60)
draw_ㅏ(-70, 0, 20, 60)
draw_ㄱ(-150, -70, 80, 30)

draw_ㅇ(-40, 0, 60, 60)
draw_ㅕ(30, 0, 20, 60)
draw_ㄴ(-40, -70, 90, 30)

draw_ㅅ(70, 0, 60, 60)
draw_ㅣ(160, 0, 10, 60)
draw_ㄴ(70, -70, 90, 30)


turtle.done()

try:
    turtle.bye()
except:
    print("bye")
